Our MB Series elevator traction machinesWith B3 overhung motor
MB94 – maximum static load 8,000 kg
Specifications
Specifications
Features |
Unit of measurement |
Value |
---|---|---|
*Reaches a sheave speed of 5.62 m/sec when equipped with Ø1000 sheave. | ||
Maximum static load |
kg |
8.000 |
Ratio |
n°/n° |
1/65 – 1/53 – 2/71 – 2/53 – 4/67 |
Roping |
n°/n° |
1/1 – 2/1 – 4/1 |
Duty load |
kg |
Up to 3,000 kg Roping 1/1; up to 5,000 kg Roping 2/1; Up to 8,000 kg Roping 4/1. |
Sheave speed |
m/s |
0,29 – 4,50* |
Regulation |
– |
4/16 – VF |
Power range 4/16 poles |
kW sinc |
13,6 -> 40,4 |
Power range VF 4 poles |
kW sinc |
11,0 -> 40,4 |
Moment of inertia without motor |
kgm² |
0,22 |
Oil capacity |
l |
9 |
Specifications
Specifications
Features |
Unit of measurement |
Value |
---|---|---|
*Reaches a sheave speed of 5.64 m/sec when equipped with Ø1000 sheave. | ||
Maximum static load |
kg |
12.000 |
Ratio |
n°/n° |
1/53 – 1/48 – 2/80 – 2/64 – 3/80 – 3/66 – 3/50 |
Roping |
n°/n° |
1/1 – 2/1 – 4/1 |
Duty load |
kg |
Up to 3,000 kg Roping 1/1; up to 5,000 kg Roping 2/1; up to 10,000 kg Roping 4/1. |
Sheave speed |
m/s |
0,35 – 4,51* |
Regulation |
– |
4/16 – VF |
Power range 4/16 poles |
kW sinc |
17,6 -> 50,7 |
Power range VF 4 poles |
kW sinc |
14,7 -> 50,7 |
Moment of inertia without motor |
kgm² |
2,1 |
Oil capacity |
l |
20 |
![](https://www.sassi.it/wp-content/webp-express/webp-images/uploads/2023/02/argano-geared-machine-MB95-sassi-1024x1024.jpg.webp)
MB95 – maximum static load 12,000 kg

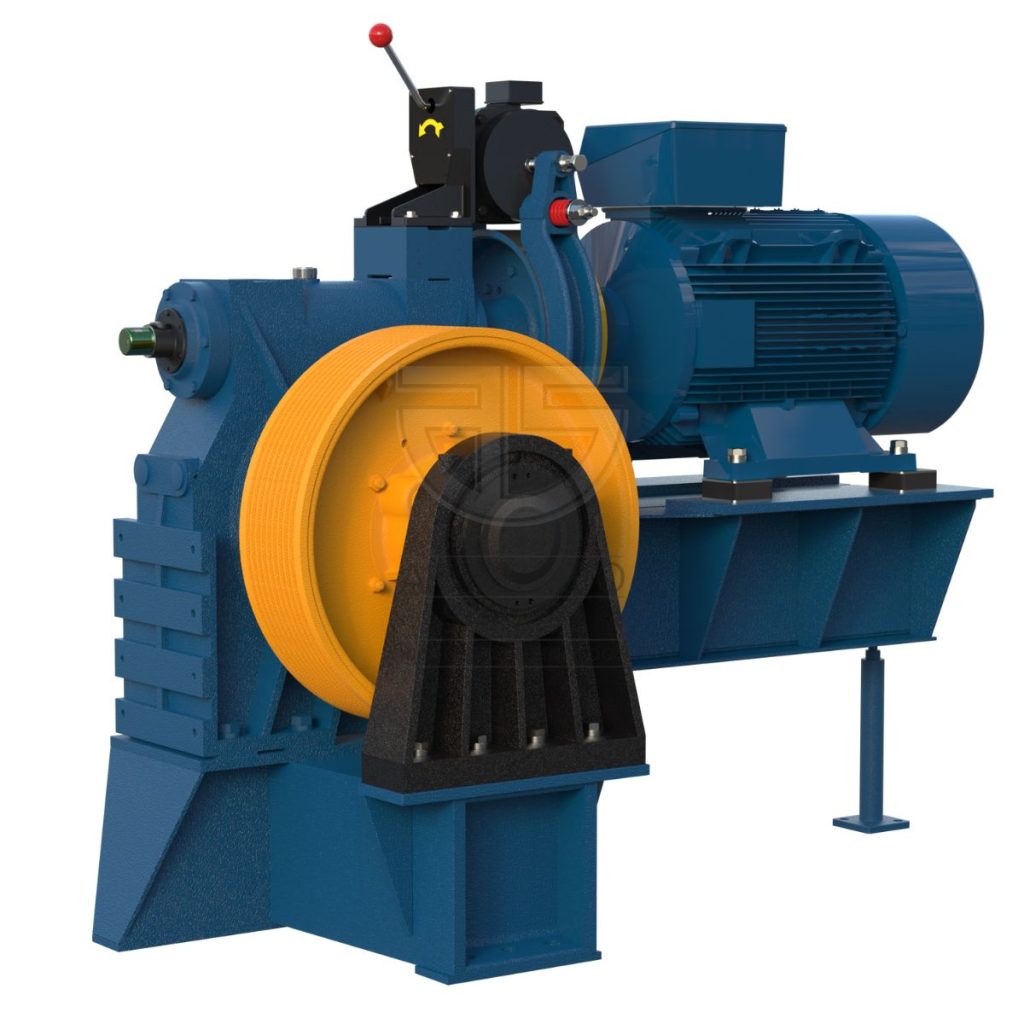

![](https://www.sassi.it/wp-content/webp-express/webp-images/uploads/2023/02/argano-geared-machine-MB108-sassi-copia-1024x1024.jpg.webp)
MB108 – maximum static load 15,000 kg
Specifications
Pulleys
Hub
Specifications
Features |
Unit of measurement |
Value |
---|---|---|
*Reaches a sheave speed of 6.37 m/sec when equipped with Ø1000 sheave. | ||
Maximum static load |
kg |
15.000 |
Ratio |
n°/n° |
1/64 – 1/48 – 2/71 – 2/57 – 3/68 – 4/59 |
Roping |
n°/n° |
1/1 – 2/1 – 4/1 |
Duty load |
kg |
Up to 5,000 kg Roping 1/1; Up to 10,000 kg Roping 2/1; Up to 15,000 kg Roping 4/1. |
Sheave speed |
m/s |
0,34 – 5,10* |
Regulation |
– |
4/16 – VF |
Power range 4/16 poles |
kW sinc |
25,7 -> 91,9 |
Power range VF 4 poles |
kW sinc |
25,7 -> 91,9 |
Moment of inertia without motor |
kgm² |
1,25 |
Oil capacity |
l |
18 |
Sheaves compatible with MB108
Gorges |
2 ÷ 10 |
2 ÷ 9 |
|||
---|---|---|---|---|---|
∅ Ropes |
8÷12 |
13÷14
|
15÷16 |
||
Dp [mm] |
De [mm] |
N [mm] |
17 |
20 |
21 |
520 |
524 |
L [mm] [kg] |
200 109 |
||
560 |
564 |
L [mm] [kg] |
200 123,5 |
||
600 |
604 |
L [mm] [kg] |
200 136,5 |
||
650 |
654 |
L [mm] [kg] |
200 153 |
||
700 |
704 |
L [mm] [kg] |
200 170 |
||
750
|
754
|
L [mm] [kg] |
200 180 |
||
800 |
804 |
L [mm] [kg] |
200 200 |
MB108 Hub
Hub |
J [kg m2] |
Weight |
---|---|---|
MPV |
2,263 |
kg 28 |
Sheaves MB
Flywheels MB
Sheaves compatible with MB 94 / MB 95 Series geared machines
Gorges |
2 ÷ 3 |
4 |
5 |
6 |
7÷8 |
||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
∅ Ropes |
8÷12 |
13÷14
|
15÷16 |
8÷12 |
13÷14 |
15÷16
|
8÷12 |
13÷14 |
15÷16 |
8÷12 |
13÷14 |
15÷16 |
8÷12 |
13÷14 |
15÷16 |
||
Dp [mm] |
De [mm] |
N [mm] |
17 |
20 |
21 |
17 |
20 |
21 |
17 |
20 |
21 |
17 |
20 |
21 |
17 |
20 |
21 |
450 |
454 |
L [mm] [kg] |
80 24 |
80 24 |
115 32 |
115 32 |
115 32 |
– |
– |
– |
– |
– |
|||||
480 |
484 |
L [mm] [kg] |
80 27 |
80 27 |
115 35 |
115 35 |
115 35 |
180 56 |
180 56 |
||||||||
520 |
524 |
L [mm] [kg] |
80 32 |
80 32 |
115 39 |
115 39 |
115 39 |
180 64 |
180 64 |
||||||||
560 |
564 |
L [mm] [kg] |
80 35 |
80 35 |
115 43 |
115 43 |
115 43 |
180 70 |
180 70 |
||||||||
600 |
604 |
L [mm] [kg] |
80 39 |
80 39 |
115 49 |
115 49 |
115 49 |
180 78 |
180 78 |
||||||||
650 |
654 |
L [mm] [kg] |
115 57 |
115 57 |
115 57 |
115 57 |
180 88 |
180 88 |
|||||||||
700 |
704 |
L [mm] [kg] |
115 69 |
115 69 |
115 69 |
115 69 |
180 97 |
180 97 |
|||||||||
750
|
754
|
L [mm] [kg] |
115 81 |
115 81 |
115 81 |
115 81 |
180 106 |
180 106 |
|||||||||
800 |
804 |
L [mm] [kg] |
115 97 |
115 97 |
115 97 |
115 97 |
180 135 |
180 135 |
MB Series Flywheels geared machines
Flywheel type |
D [mm] |
H [mm] |
J** [kgm²] |
Weight [kg] |
---|---|---|---|---|
* in aluminum |
** J=GD2/4 |
*** External flywheel only |
||
350 – 20 AMB*
|
350 |
20 |
0,055 |
4,0 |
300 – 20 MB |
300 |
20 |
0,086 |
7,0 |
350 – 30 MB |
350 |
20 |
0,230 |
13,0
|
350 – 42 MB |
350 |
42 |
0,375 |
20,0 |
380 – 50 MB |
380 |
50 |
0,533 |
24,0 |
400 – 40 MB |
400 |
40 |
0,578 |
23,0 |
400 – 60 MB |
400 |
60 |
0,793 |
29,0 |
400 – 80 MB
|
400 |
80
|
1,008
|
36,0 |
400 – 120 MB*** |
400 |
120 |
1,438 |
58,0 |
